Ultimate Guide to Audi TT 2013 Airbag Light Fix | Crash Sensor G179 (Code 01221)

Introduction to the Airbag Light Issue in Audi TT

A lit airbag warning light in your Audi TT can be alarming. It’s not just an inconvenience—it indicates that one or more airbags may not deploy in a crash, compromising safety. This article walks you through diagnosing and repairing the issue behind DTC code 01221 – Crash Sensor Side Airbag, Driver Side (G179)—a common fault in Mk2 Audi TTs and related models.

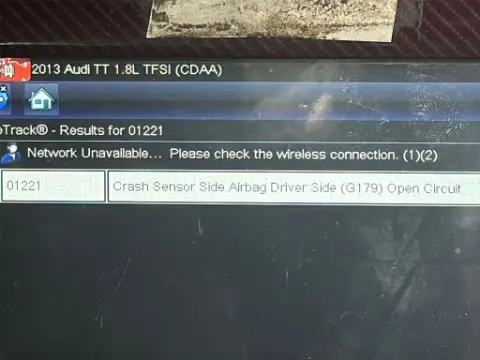

Understanding DTC Code 01221 – Crash Sensor Side Airbag, Driver Side (G179)

The Diagnostic Trouble Code (DTC) 01221 points directly to the G179 crash sensor, located inside the driver’s side door. This sensor detects side impacts and relays data to the airbag control unit, prompting deployment of side airbags if needed.

When code 01221 is stored, it typically means the sensor is either not communicating, is damaged, or the wiring harness connecting it is faulty—usually due to broken wires.

Models Affected by G179 Crash Sensor Fault

This fault isn’t exclusive to the 2013 Audi TT. It also affects:

• Audi TT Mk2 (2007–2014)
• Audi A3 (2009–2013) using similar crash detection systems
• Audi TTS and TTRS (Mk2 variants)

How the Airbag System Detects Side Impact

Crash sensors like G179 are strategically placed to detect abnormal pressure or impact. In side collisions, G179 triggers airbag deployment within milliseconds. It's typically located inside the door cavity, integrated with the wiring harness, and relies on intact cabling for accurate data transmission.

Warning Signs of Crash Sensor Failure

Here’s what you’ll likely notice:

• Airbag light illuminated on the dashboard
• Stored fault code 01221 on a diagnostic scanner
• Possible "Airbag Fault" message on the instrument cluster
• No visible external damage, misleading the diagnosis

Tools Required for Diagnosis and Repair

Before you begin, gather:

• OBD-II Scanner (with airbag system support)
• Trim removal tools (optional)
• Multimeter (to test continuity)
• Wiring pick/probe
• Heat shrink tubing or insulation tape
• Electrical contact spray

Shortcut Fix – Repair Without Removing Door Panel

Traditionally, accessing G179 required removing the entire door panel—a time-consuming job. However, there's a practical shortcut used by experienced techs:

Step-by-Step Guide to Diagnosing the G179 Crash Sensor

1. Open the driver’s door fully.

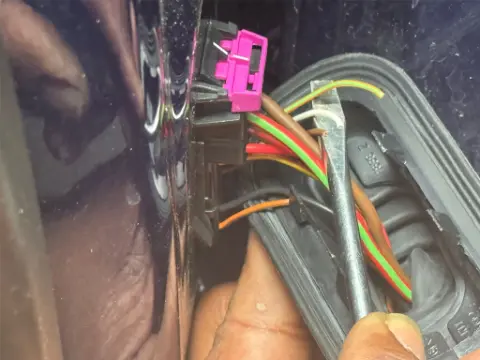

2. Locate the rubber boot (grommet) between the A-pillar and the door.
3. Peel back the boot carefully without damaging the seal.

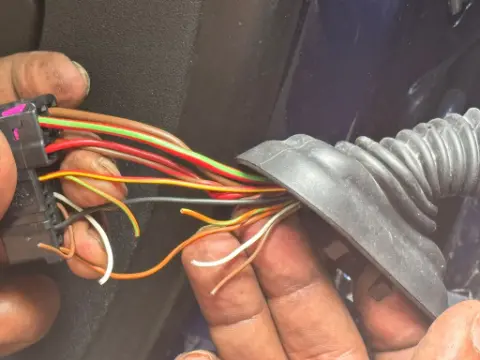

4. Visually inspect the wiring—especially pink, purple, yellow, and brown wires.
5. Use a multimeter to test continuity in the suspected wires.
6. Look for any corrosion, cuts, or disconnections.

Common Causes – Broken Wires Inside Door Harness



In many cases—like the one diagnosed in the video—the root cause is broken wiring inside the flexible rubber conduit. Over time, opening and closing the door puts strain on these wires, eventually causing them to fray or snap.

How to Repair the Damaged Wiring

If a broken or intermittent wire is found:

1. Cut out the damaged section cleanly.
2. Splice new wire of similar gauge using solder or crimp connectors.
3. Cover the joint with heat shrink tubing for durability.
4. Secure all wires neatly back inside the boot.

How to Reset the Airbag Light After Repair

Once the wiring is repaired:

• Plug in your OBD-II scanner
• Navigate to Airbag module
• Clear the 01221 DTC
• The airbag light should now turn off

If the light doesn’t go away, recheck wiring or consider sensor replacement.

Preventing Future Crash Sensor Issues

To avoid recurring faults:

• Avoid slamming doors
• Check harness condition during regular service
• Use rubber-friendly grease to reduce cable wear
• Keep moisture away from connectors

How This Fix Compares to Other Methods

Old Method:  Door panel removal, extensive labor, risk of damaging clips
New Shortcut:  Access via grommet, inspect and fix in less than 30 minutes

When to Seek Professional Help

Call a professional if:

• You see multiple airbag codes
• Repairs don’t clear the light
• Airbag module itself is faulty
• Wiring damage extends into the door control unit

Related Fault Codes to Be Aware Of

• 01222 – Crash Sensor Passenger Side (G180)
• B1017 – Open Circuit, Driver Side
• B1036 – Open Circuit, Passenger Side

These share similar causes and may be diagnosed with the same method.

Refer this video for your reference



FAQs About Audi TT Airbag Crash Sensor Code 01221

Q1: Is the G179 sensor easy to replace?
 A1: It can be tricky—accessing it typically requires removing the door panel unless using the shortcut method.

Q2: Will disconnecting the battery help reset the airbag light?
 A2: No. You’ll need a diagnostic scanner to clear fault code 01221.

Q3: Can I drive with the airbag light on?
 A3: Technically yes, but it's unsafe—airbags might not deploy during an accident.

Q4: What colors are the wires related to G179?
 A4: Typically purple, pink, yellow, and brown—always verify using a diagram.

Q5: Do all Mk2 Audi TTs have this sensor layout?
 A5: Yes, models from 2007–2014 share a similar crash sensor layout.

Q6: Will this fix work on Audi A3 or TTS?
 A6: Yes, the wiring and sensor setup are nearly identical across these models.

Solving Audi TT Airbag Light Without Hassle

Fixing DTC 01221 – Crash Sensor G179 doesn’t have to be a daunting task. By using the shortcut via the door rubber boot, you can diagnose and repair the issue in under an hour—without removing the door panel. This guide equips you with all the knowledge and tools to confidently tackle the problem and restore your Audi’s safety system.
